Detail Information

Product Name::	HCO Oxygen Sensor	Application::	Oxygen/air Conditioning & Refrigeration Equipment
Application Areas::	Aerospace, Automotive, Medical, Refrigeration And Other Fields	Operating Temperature：:	―40℃～125℃
Accuracy::	±0.5%FS(BFSL),±0.25%FS(BFSL)	Dielectric Contact Material：:	17-4PH/316L
Shell Material：:	304 Stainless Steel	Min Measuring Range：:	0-350KPa
Max Measuring Range：:	0-70MPa	Insulation Resistance::	>100M/250VDC
Highlight:	Ultrasonic Oxygen Concentration Sensor , 350KPa o2 concentration sensor , HCO Oxygen Concentration Sensor

Product Description

HCO Series Ultrasonic Oxygen Concentration Sensor High Reliablity OEM for CNC Medical Machine Parts

Descriptions of PC Series Universal Pressure Sensor:

Brand Name:	ISOCHI	Place Of Origin:	China
Model:	HCO Series	Color:	Black
Lead Time:	4 Days After Payment	Application:	Oxygen/air conditioning & refrigeration equipment

Product description:

HCO series oxygen concentration sensor is an ideal economic and practical oxygen concentration detection module based on ultrasonic principle. It has the characteristics of high precision,low cost,high reliability,easy to use, and also has the function of concentration/flow/temperature detection. It is widely used in the fields of agriculture/ industry/environmental detection, especially in the oxygen generator industry.

Specifications:

Concentration measurement range	21%-95.6%(Other ranges can be customized)
Concentration resolution	0.1%
Concentration detection accuracy	±1.5%FS@(5~55℃)(1% Customizable)
Flow detection range	0-10L/min
Flow detection accuracy	±0.2 L/min@(5~55℃)
Digital output	USART
Working voltage	5V or 12V(Optional)
Communication method	Blind or inquiry (default blind)
Detection period	500ms
Oxygen	No corrosion / No condensate
Working temperature	5~55℃(Other temperature ranges can be customized)
Storage temperature	-40~85℃
Relative temperature	0~99%(Non condensation)
Working current	＜30mA
Intake direction	Follow the arrow

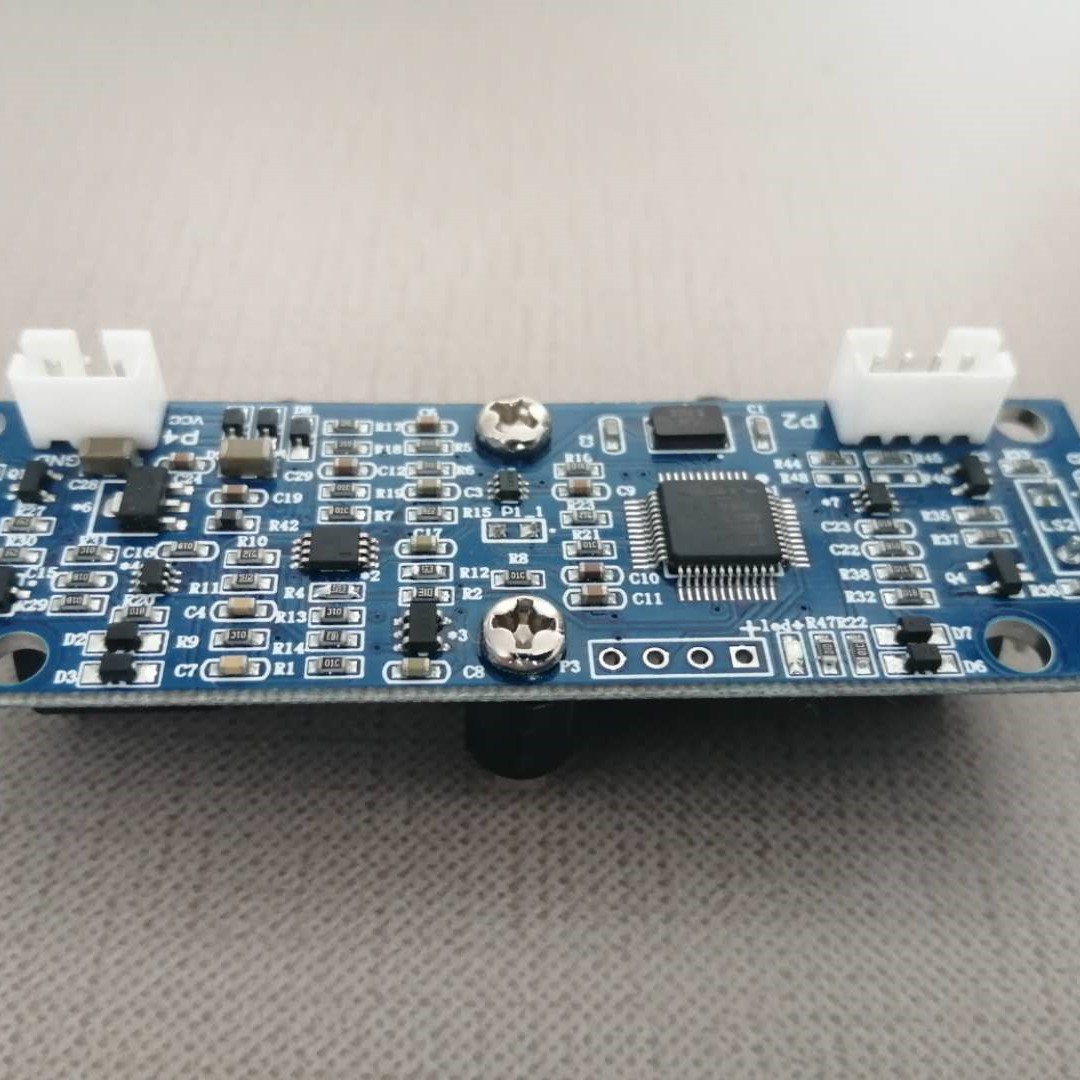

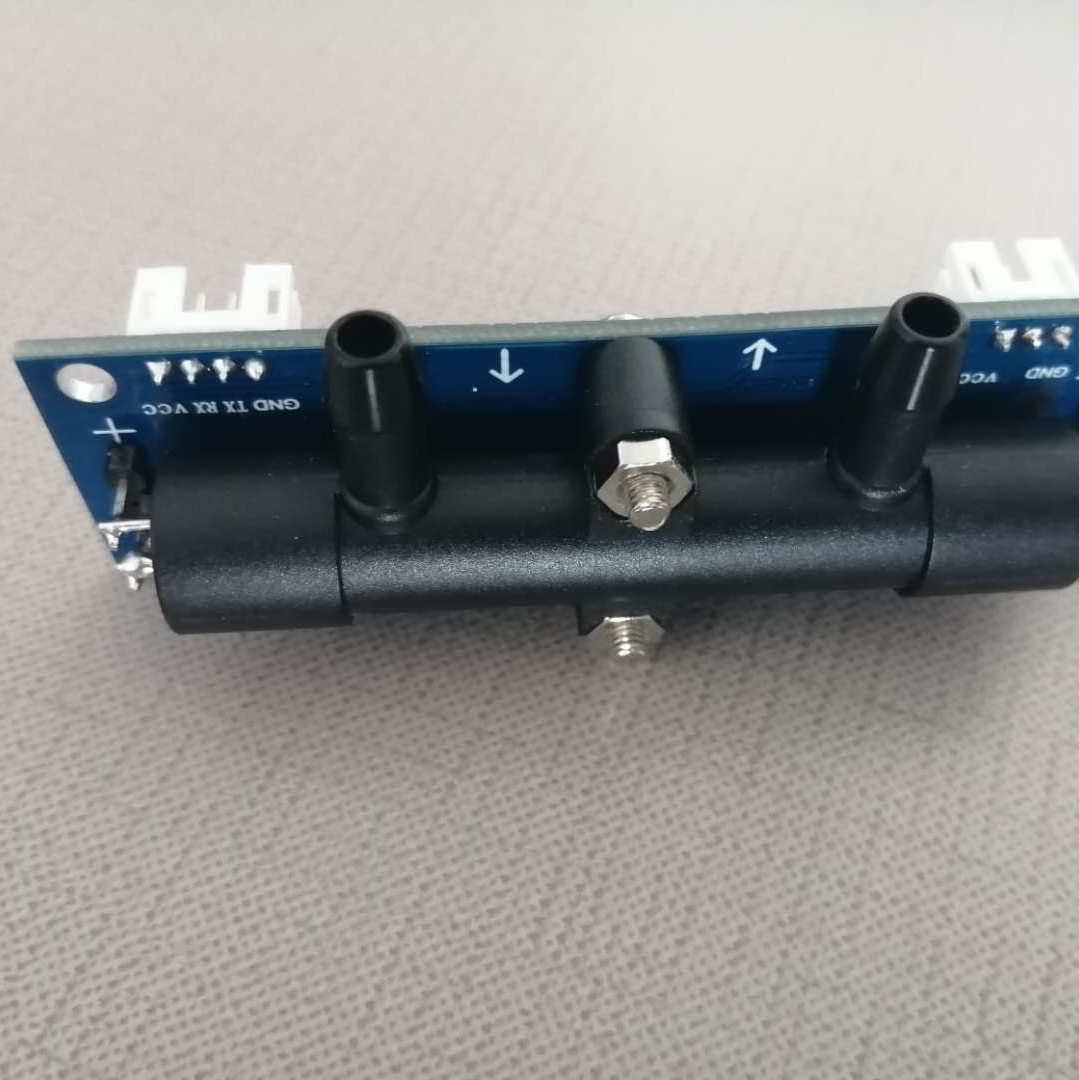

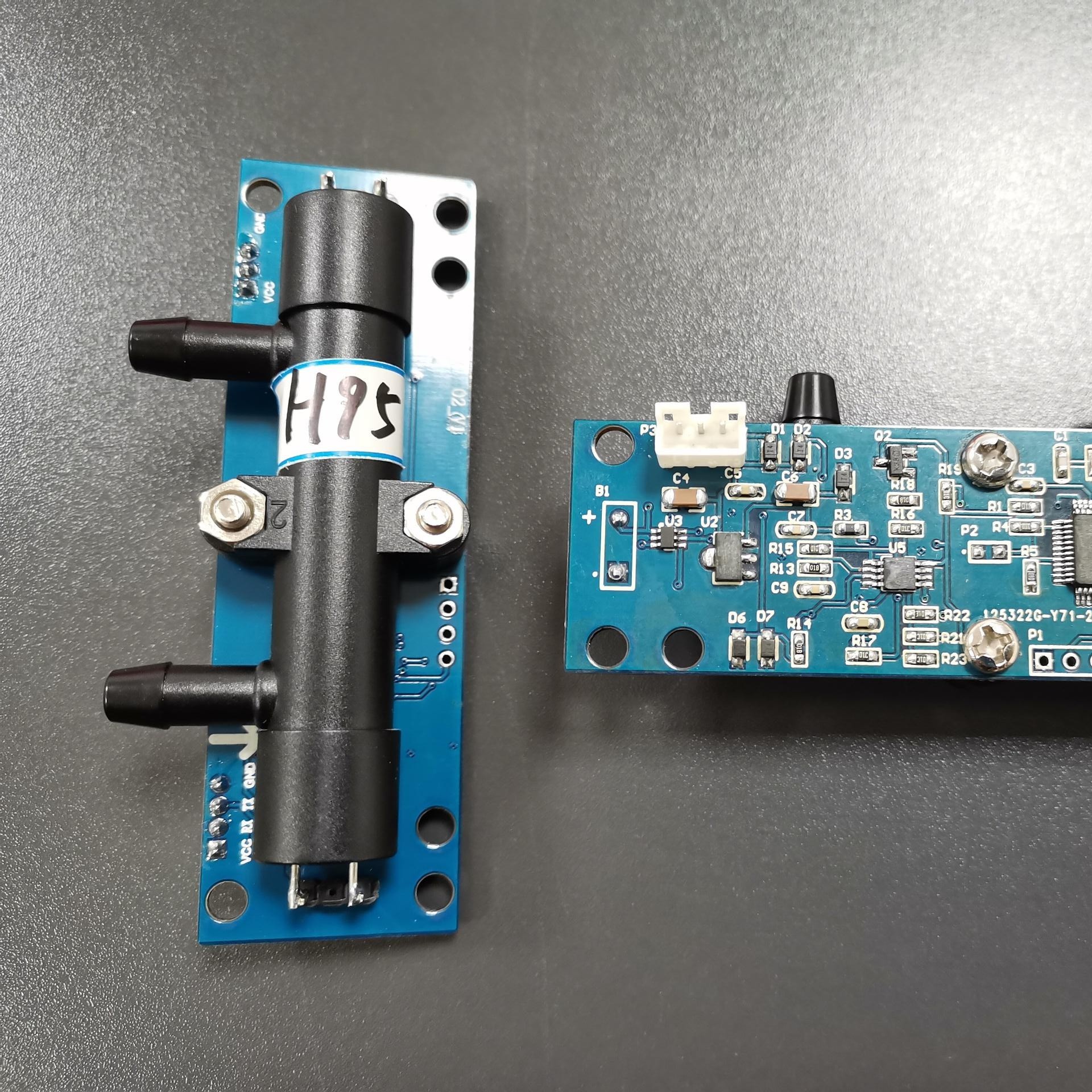

Product show of HCO Oxygen Sensor:

About delivery:

Common products are delivered within 4 days and will be shipped in the order they are ordered. Negotiable if urgent.

About after sales:

If it is a product quality problem, please contact us within 15 days after receiving the goods, and we will properly handle and satisfy the customer according to the agreement.

Tag:

Place of Origin:	China
Brand Name:	ISOCHI
Certification:	ISO
Model Number:	HCO

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Usually in standard package, Plastic bay + Carton packing,can meet custormer's requirement
Delivery Time:	4 days
Payment Terms:	T/T, Western Union,Paypel
Supply Ability:	190 Pieces per Week
