Detail Information

Model No.::	ISCL228	Machine Dimension::	190015501550mm
Power::	2kw	Voltage::	220V±10%
Air Pressure::	0bar	Motor Drive::	3-axis Servo Motor
Machine Weight::	1950kg	Spindle Speed::	45-60krpm /min
Highlight:	high precision drilling machine , high speed drilling machine

Product Description

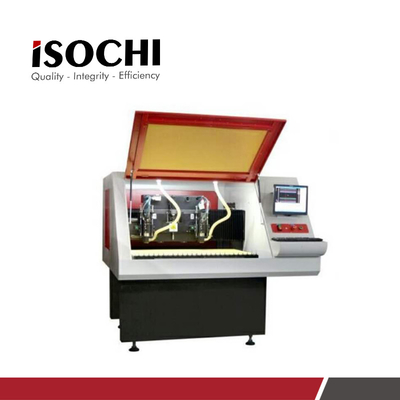

60krpm Precision Linear Guide Drilling Machine AUTO Tool Change For PCB Industry

Product Datas:

Motor Drive	3-axis Servo Motor
Machine Beam	Marble
Feed Rate X,Y-axis	20m/min
Max. Working Area	550mm*650mm
Linear Guide	Taiwan HIWIN High Precision Linear Guide
Drilling Diameter	Φ0.4mm-Φ6.35mm
Positioning Accuracy	0.02mm/300mm
Replicate Positioning Accuracy	0.01mm
Spindle Speed	45--60krpm /min
Ball Screw	Taiwan Grinding Ball Screw(10mm Lead range)
Spindle cooling method	Water cooling
Tool Change Mode	Antomatic Tool Change
Machine Dimension	190015501550mm

Working Conditions:

Power Supply:	220V±10%
Power	2kw
Air Pressure:	0 bar

Features:

Natural granite,the machine body is high precision,less deformation,highly stable,high hardness,non-rust,acid and alkali resistance etc.

Drive System:

AC Servo Motor with large torque,non-step to lose,strong anti-interference,high precision.

Screw Guide:

Taiwan brand,high precision&speed,long wear-resistant time etc.

Spindle:

Domestic well-known brand,high precision&speed,stably,reliably etc.

Control System:

Using Professional PCB Drilling&Milling System,distinguishing Gerber,ROU file formats,automatic configuration parameters,operating easily,safely and conveniently.

Dust-proof System:

Lock-type closed foot press,better for dust absorption,effective prevention of pin collision.

Our Service:

1, Specific designed to meet differents customers's requirements...
2, 24 hours technical support by email and telephone service..
3, Warranty: 1year for free repair (Except consumables), provide free technical service support for all life.
4, Provide English manual or operating video.

Place of Origin:	China
Brand Name:	ISOCHI
Certification:	ISO
Model Number:	ISCL228

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard wooden case or according to customers' requirement
Delivery Time:	30 days
Payment Terms:	T/T, , L/C
Supply Ability:	4 Sets per Month

60krpm Precision Linear Guide Drilling Machine AUTO Tool Change For PCB Industry

high precision drilling machine

high speed drilling machine

60krpm Precision Linear Guide Drilling Machine AUTO Tool Change For PCB Industry

1, Specific designed to meet differents customers's requirements...
2, 24 hours technical support by email and telephone service..
3, Warranty: 1year for free repair (Except consumables), provide free technical service support for all life.
4, Provide English manual or operating video.
