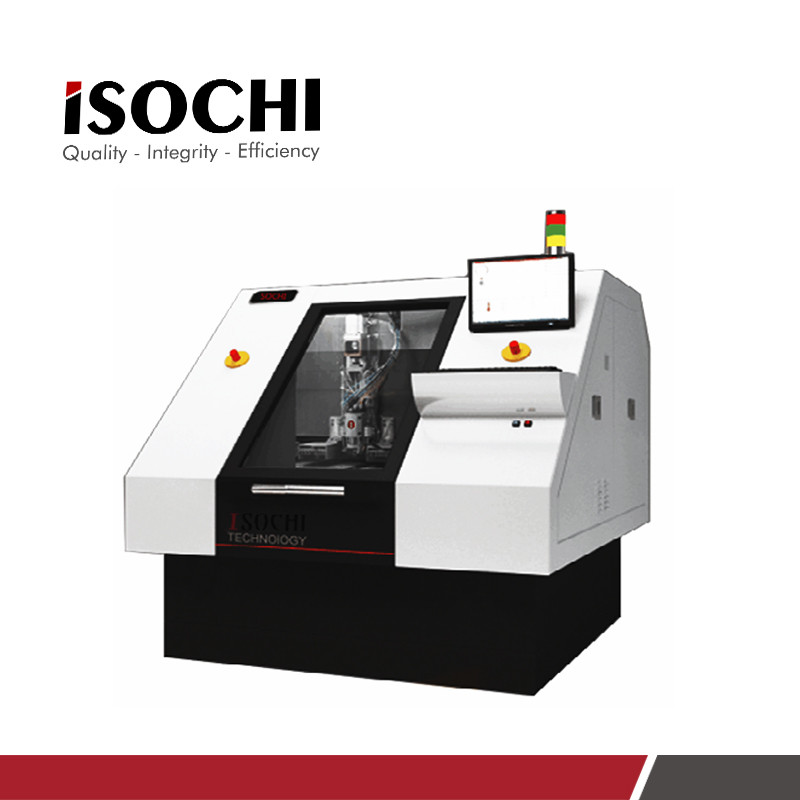

Single Head PCB Drilling Equipment 180000 RPM Strong Anti Interference For PCB

Single Head PCB Drilling Equipment 180000 RPM Strong Anti Interference For PCB
Single Head PCB Drilling Equipment 180000 RPM Strong Anti Interference For PCB
Basic Information
Place of Origin: China
Brand Name: ISOCHI
Certification: ISO
Model Number: ISC118
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Standard wooden case or according to customers' requirement
Delivery Time: 25 work days
Payment Terms: T/T, , L/C
Get Best Price Contact Now
Detail Information
Application: Printed Circuit Board Machine Beam:: Jinan Natural Granite,the Machine Body Is High Precision,
Model No.:: ISC118 Machine Dimension:: 1710*2100*1605mm
Drilling Diameter:: Φ0.2mm-Φ6.35mm Drilling Accuracy:: ±0.004mm
Positioning Accuracy:: ±0.004mm Replicate Positioning Accuracy:: ±0.0025mm
Spindle Speed:: 160-180krpm ABL/Westwind(Optional) Max. Drilling Speed:: 480-550hole/min
Tool Change Mode:: Automatic Tool Change BrokenTool Detection:: Laser Tool Detector
Machine Weight:: 4000kg Power Supply:: 3PH-AC380V+PE,50/60HZ 15KVA
Highlight:

pcb drilling equipment

,

high precision drilling machine

Product Description

Single Head PCB Drilling Equipment 180000 RPM Strong Anti Interference For PCB

Our Service:

1, Specific designed to meet differents customers's requirements...
2, 24 hours technical support by email and telephone service..
3, Warranty: 1year for free repair (Except consumables), provide free technical service support for all life.
4, Provide English manual or operating video.

Working Conditions:



Power Supply: 3PH-AC380V+PE,50/60HZ 15KVA
Temperature: 22±2℃/45%-65%
Noise: ≤75dBA
Temperature: 22±2℃/45%-65%


The drilling speed depends on the thickness of the plate, the number of plates and the hole size. The drills on

the 2*1.6mm PCB,for 0.3 holes the drilling speed is more than 460 holes/min； 0.5 holes,and the drilling speed

is more than 510holes/min.





Product Datas:

Model: SC118
Spindle Quantity: 1
Machine beam:

Jinan natural granite,the machine body is high precision,

less deformation and highly stable
Machine Dimension: 1710*2100*1605mm
X,Y,Z-axis stroke: 560mm*700mm*40mm
Z-axis drive: Imported servo motor
Max. Working Area: 560mm*700mm
Drilling Diameter: Φ0.2mm-Φ6.35mm
Drilling Accuracy: ±0.025mm
Positioning Accuracy: ±0.004mm
Replicate Positioning Accuracy: ±0.0025mm
Spindle Speed: 160-180krpm ABL/Westwind(Optional)
Spindle cooling method: Water cooling
Power Supply: 3PH-AC380V+PE,50/60HZ 15KVA
Noise: ≤75dBA





Notes:

The drilling speed depends on the thickness of the plate, the number of plates and the hole size. The drills on the 2*1.6mm PCB,for 0.3 holes the drilling speed is more than 460 holes/min； 0.5 holes,and the drilling speed is more than 510holes/min.



More pictures:





Single Head PCB Drilling Equipment 180000 RPM Strong Anti Interference For PCB 0

Single Head PCB Drilling Equipment 180000 RPM Strong Anti Interference For PCB 1

Single Head PCB Drilling Equipment 180000 RPM Strong Anti Interference For PCB 2
