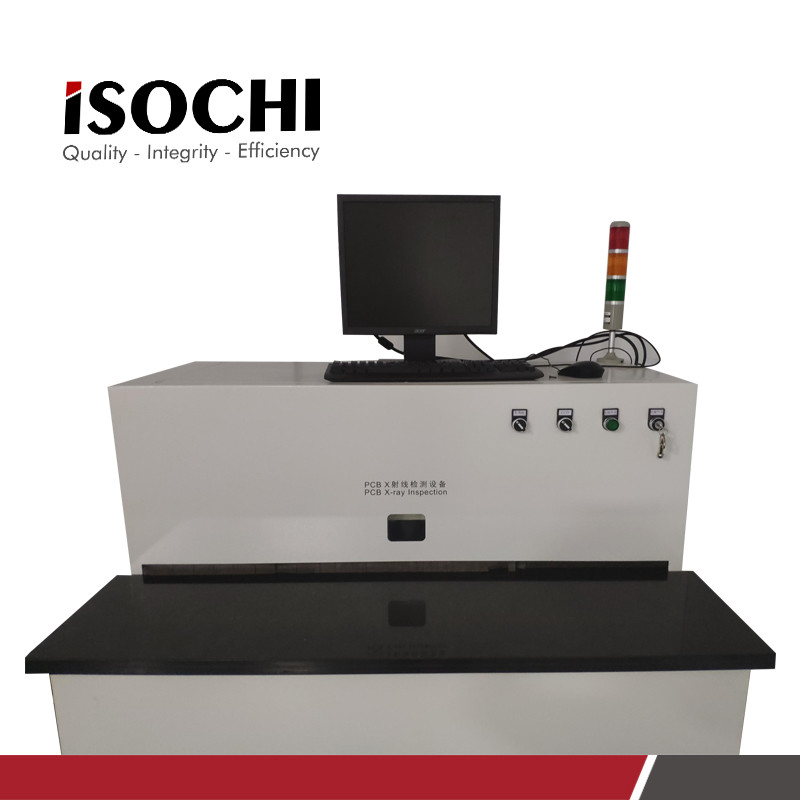

Name: High Precision PCB X Ray Inspection Machine For PCB Checking 1.8m * 1m 220V
Brand: SOCHI
SKU: RYT-1000
Rating: 4.9 (120 reviews)

High Precision PCB X Ray Inspection Machine For PCB Checking 1.8m * 1m 220V

Basic Information

Place of Origin:	China
Brand Name:	SOCHI
Certification:	ISO
Model Number:	RYT-1000

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard wooden case or according to customers' requirement
Delivery Time:	35 working days after receipt of customer's payment
Payment Terms:	T/T
Supply Ability:	10 Set/Sets per Month

Get Best Price Contact Now

Detail Information

Model No.::	RYT-1000	Space Usage::	1.8m × 1m
Air Temperature::	+5~+40℃	Power::	220V 50/60Hz
Light Pipe Type::	Closing Pipe	Maximum Tube Voltage::	50kV
Windows::	Φ25mm	Monitoring Area::	1060 Mm *800mm
Weight::	200kg
Highlight:	x ray inspection machine , pcb x ray machine

Product Description

**High Precision PCB X Ray Inspection Machine For PCB Checking 1.8m * 1m 220V**

1.Product Characteristics:

① X-ray tube can be selected to meet various thickness detection

② Independent research and development of high-definition imaging system, simple judgment

③ User-friendly software system, easy to operate

2.Production Function:

RYT-1000 is mainly used for the analysis and measurement of the pre-lamination process and the post-drilling process in the PCB production process of the multi-layer circuit board. Accurate measurement and analysis of point-to-point, point-to-line, radius, diameter, concentricity, etc., to find process errors in advance, to avoid batch quality problems.

3.Working Conditions:

Space Usage:	1.8m × 1m
Air temperature:	+5~+40℃
Relative humidity:	≤80%
Power Supply:	220V 50/60Hz

4.Product Datas:

Light Pipe Type	Closing pipe
Maximum tube voltage	50kV
Maximum tube current	1.0mA
Focus size	0.1 *0.1mm
Detector	High - resolution X - ray CCD camera
Focus size resolution	20lp/mm
Windows	Φ25mm
Magnification	10-15-20 times
Monitoring Area	1060 mm *800mm
Machine Body Size	H1600 mm W700 mm L1200mm
Weight	200kg
Power supply	AC220V 50/60Hz
Radiation dose	＜1μSv/h

5.Our Features:

1, Specific designed to meet differents customers's requirements...
2, 24 hours technical support by email and telephone service..
3, Warranty: 1year for free repair (Except consumables), provide free technical service support for all life.
4, Provide English manual or operating video.

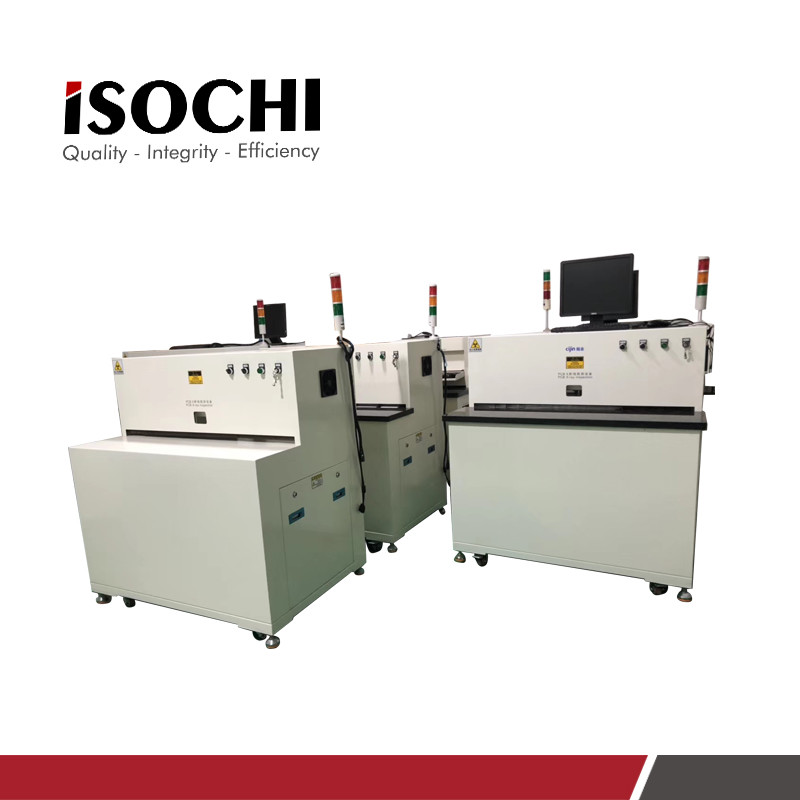

6.More picture:

High Precision PCB X Ray Inspection Machine For PCB Checking 1.8m * 1m 220V 0
