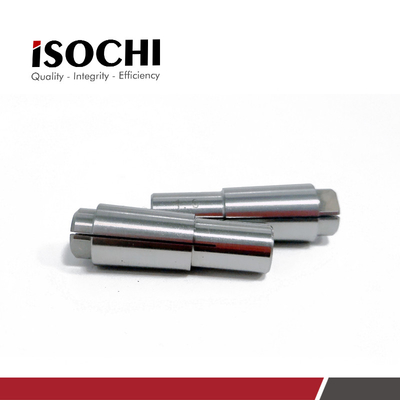

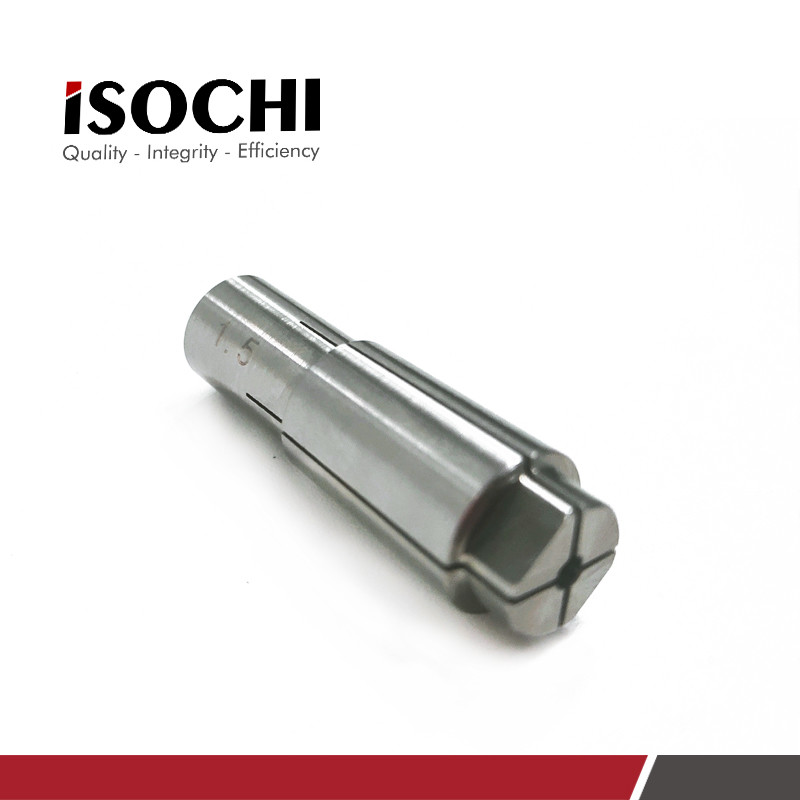

4 Jaw 56-59 Hardness Spindle Collet CR2000 1.5mm/0.06" PCB Excellon Router Chuck
Specifications:
|
Material
|
Stainless Steel
|
|
Color
|
Silver
|
|
Precision
|
8um
|
| Inner Diameter |
1.5mm/0.06"
|
| Total Length |
28.5mm/11.22" |
|
Dynamic ranout
|
9~13μm
|
|
Stastic ranout
|
2um
|
|
Customized
|
Yes
|
|
Condition
|
New Collet
|
|
Brand
|
ISOCHI
|
| Application |
Excellon Routing Machine/420.480.820.880 Spindle |
Descriptions:
Collet Maintenance:
Collet Maintenance - How Often?
It is important to carry out regular collet maintenance to ensure excellent performance and long life from your spindles.
ISOCHI suggest the following maintenance intervals:-
Removable collets every 100 operating hours
Bonded collets every 24 operating hours
The actual frequency of collet maintenance is dependent on application, usage and environment, and could be shorter or longer than the times suggested above.
Please contact ISOCHI if you would like advice on your particular situation.
ISOCHI collet advantages:
The chuck is light weight, fast in acceleration, little affected by centrifugal force, and high in concentricity. It can be exchanged quickly when changing parts. Suitable workpiece size range is limited. Long axial dimension is more suitable for small parts. More suitable for workpieces with uniform diameter and size. Throughout the production process, the collet can significantly save processing time.
Collet material-stainless steel:
Stainless steel refers to steel that is resistant to corrosion by weakly corrosive media such as air, steam, and water, and chemically corrosive media such as acid, alkali, and salt. It is also called stainless acid-resistant steel. In practical applications, steel that is resistant to corrosion by weakly corrosive media is often referred to as stainless steel. Stainless steel is an extremely thin, strong and stable chromium-rich oxide film (protective film) formed on its surface. Prevent oxygen atoms from infiltrating and continuing to oxidize, and obtain rust resistance.
Service life
Please refer to the replacement standard of Westwind, the warranty period of ISOCHI is 2 months.
| Collet list and application spindle |
| Model |
PN |
Application other Spindle |
| D1331-26 |
38431;34381 |
D1404 ,D1502 ,D1686-01 ,02 ,03 ,04 |
| 1331-25 ,26 ,29 ,31 |
| D1331-36 |
38730 |
D1331-36 |
| D1331-41 |
37462 |
1331-08,30,32,41,42,44,D1201 |
| 1531-08 ,SM170 , MCT150 ,160 ,170 |
| D1331-47 |
41928 |
1331-22 ,1331-47 |
| D1331-49 |
41611 |
1331-49 ,48 ,51 |
| D1686 |
40374 |
D1686-10 ,11 ,12 ,13 ,15 ,16 ,18 ,19 ,23 |
| D1722-03 |
|
1264 ,1600 , H501 ,H512 ,1600-01 ,H516D |
| D1769 |
41611 |
1769-06 ,10 |
| D1787 |
|
D1787-01 ,D1787-07 |
| D1822-01 |
|
D1822-09 |
| M320-64C |
39773 |
M320-64C |
| ABWR80 |
17508 ; 216844-10 , |
1251-03,ABWR80,M320-60,ABW80 |
| ABW125 |
41844;414741-01 |
D1199-06,10,ABW125,ABW-170,D1473-07 |
| SC-53 |
53533;033503 |
SC-53 |
| SC-63 |
63503 |
SC-63 |
| SC-3163 |
263508 ; 263506; 263504 |
SC-3263,HB60B,61B,HB60D,RA-60,KL-60B |
| W-62 |
40508518 |
W-62 |
| W-69 |
230505 |
W-69 |
| HB50B |
230504 |
HB50 |
| More than above models can offered please contact us for details. |
More pictures:
About delivery:
Common products are delivered within 3 days and will be shipped in the order they are ordered. Negotiable if urgent.
About after sales:
If it is a product quality problem, please contact us within 15 days after receiving the goods, and we will properly handle and satisfy the customer according to the agreement.
