Detail Information

Machine Model:	ISC618Z	Spindle Quantity:	6
Machine Dimension:	442020001680mm	Tool Change Mode:	Antomatic Tool Change
Machine Weight:	8000kg	Drilling Diameter:	Φ0.2mm-Φ6.35mm
Drilling Accuracy:	±0.025mm	Positioning Accuracy:	±0.004mm
Replicate Positioning Accuracy:	±0.0025mm	Spindle Speed:	160-180krpm ABL/Westwind(Optional)
Max. Drilling Speed:	460-500hole/min	Spindle Cooling Method:	Water Cooling
Highlight:	high precision drilling machine , high speed drilling machine

Product Description

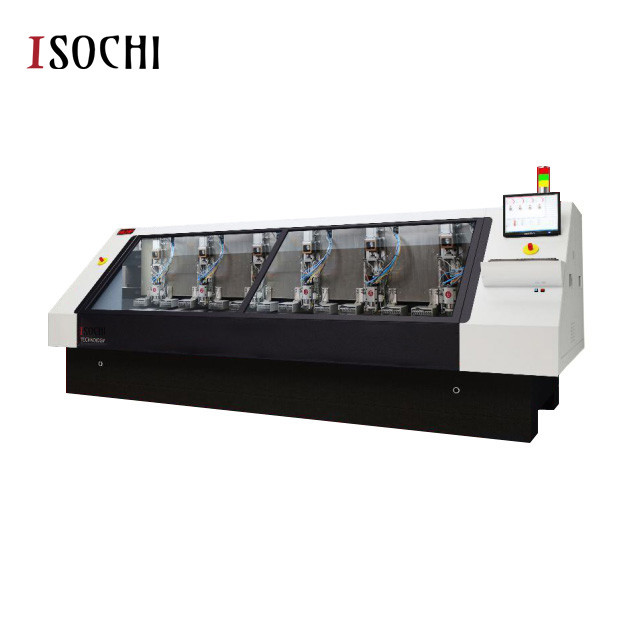

High Stability CNC PCB Drilling Machine Auto Tool Change 180krpm Ultra Speed

Main Features

"Natural granite,the machine body is high precision,less deformation,highly stable,high hardness,non-rust,acid and alkali resistance etc.
Drive System:
AC Servo Motor with large torque,non-step to lose,strong anti-interference,high precision.
Screw Guide:
Taiwan brand,high precision&speed,long wear-resistant time etc.
Spindle:
Domestic well-known brand,high precision&speed,stably,reliably etc.
Control System:
Using Professional PCB Drilling&Milling System,distinguishing Gerber,ROU file formats,automatic configuration parameters,operating easily,safely and conveniently.
Dust-proof System:
Lock-type closed foot press,better for dust absorption,effective prevention of pin collision.

Parameters:

Product Name	6-Axls PCB Drilling Machine
Spindle Speed	180000 r/min
Tool Change Mode	Auto tool change
Repeated positioning accuracy	±0.0025
Air pressure requirements	British ABL/ West wind 160-180krpm(Optional)
Drill Accuracy	1.0Mil (±0.0254mm)
Machine weight	8000kg
(X Y )Axis Max. Speed	70m/min
Z Axis Max. Speed	30m/min
Effective Stroke	56070040
Positioning Accuracy	±0.005
Drilling/Routing Tool Dia	0.6 - 3.175 mm
Cooling Way	Water Cooling
Drill Speed	460-500 hoels/min
Ball Screw	NSK Japan
Guide Rail	Rexroth Germany

More pictures:

Tag:

Place of Origin:	China
Brand Name:	ISOCHI
Certification:	ISO
Model Number:	ISC618Z

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard wooden case or according to customers' requirement
Delivery Time:	30 days
Payment Terms:	T/T, , L/C
Supply Ability:	10 Set/Sets per Month
